Algorithms

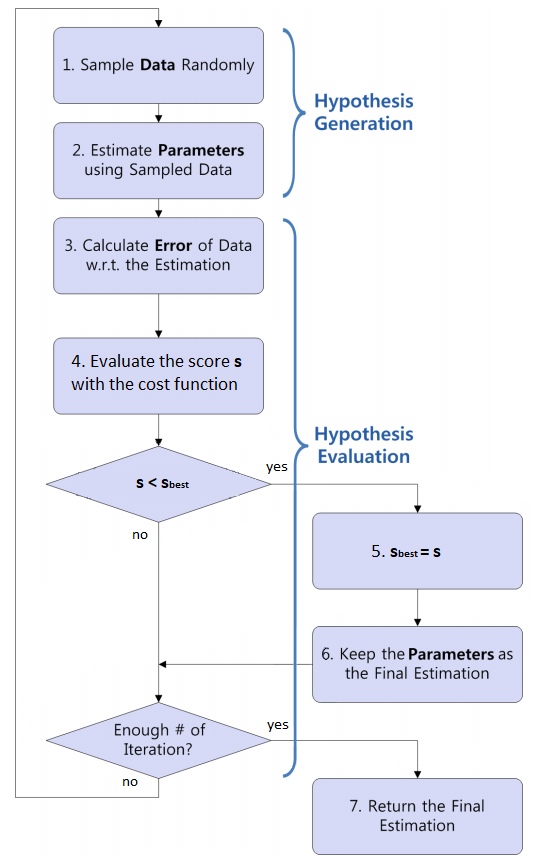

All methods of robust estiomation are iterative and based on a random selection of a small subset of samples which is used for model estimation. Then, using their proper loss function, they obtain a score for the given model, i.e. how well the model fits to the data. After a number of iterations, the model with the best score is retained as the solution of the problem. The general algorithm is presented in figure below.

Other Robust estimators, such as MSAC or MLESAC, follow the similaire steps, the main difference between the methods is thier loss function.

RANSAC

The RANSAC (Random Sample Consensus) seeks to maximize the inliers ratio (in other words, minimize the number of outliers). The cost function is given as:

\[\begin{split}\begin{equation} \mathcal{C}_{RANSAC}(\mathcal{e}_i) = \begin{cases} 0 & \text{$\varepsilon_{i}^2 < \mathcal{t}^2$} \\ 1 & \text{otherwise} \end{cases} \end{equation}\end{split}\]

where t is a threshold allowing to judge whether a given point is an inlier. We can see, that this algorithm does not take into account the quality of inliers as they all have the same cost.

LMedS

LMedS algorithm has the cost function which is defined as follows:

\[\mathcal{C}_{LMedS} = median(\mathcal{E}^2)\]

Actually once the model is estimated, we calculate the errors for all sample points and put them in an array. The median of this array is \(\mathcal{C}_{LMedS}\). So, the goal of the algorithm is to minimize the median of errors. In order to give a reliable estimate, the sample set must contain at least 50% of inliers, i.e. correct points. Remark, that the cost is estimated from the vector of errors which is no longer true for the remaining algorithms. For them, the cost is estimated for every data point separately, while the global cost is obtained as the sum of this costs:

\[\mathcal{C} = \sum_{i=1}^{N_{pts}} \mathcal{C}(\varepsilon_{i})\]

M-SAC

MSAC, which stands for M-estimator Sample Consensus, is the algorithm in which every inlier have a penalty score given by how well the point corresponds to a model:

\[\begin{split}\begin{equation} \mathcal{C}_{MSAC}(\mathcal{e}_i) = \begin{cases} \varepsilon_{i}^2 & \text{$\varepsilon_{i}^2 < \mathcal{t}^2$} \\ \mathcal{t}^2 & \text{otherwise} \end{cases} \end{equation}\end{split}\]
